Introduction

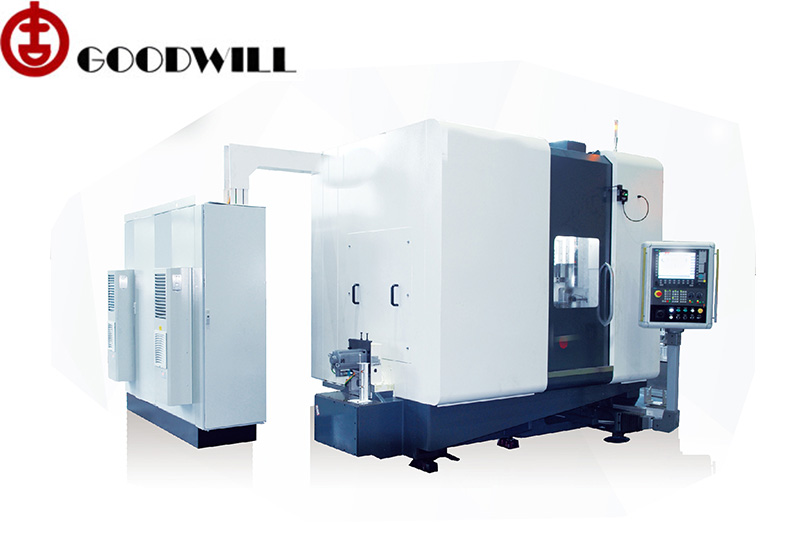

CNC Gear grinding machine. Total 11 moving Axis, fully Siemens 840Dsl motors, drivers and so on parts.

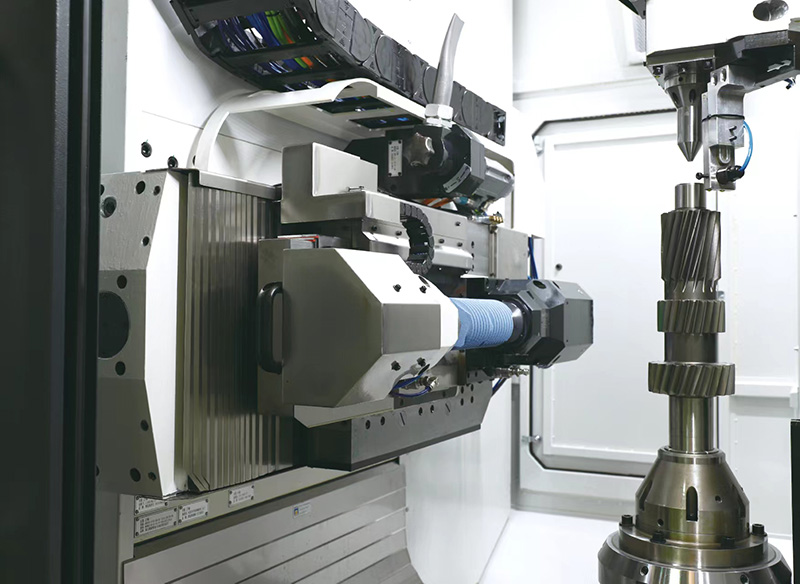

All the main parts are from worldwide first class,like spindles, guideway, bearings and so on. Enjoy it by China made price with world class quality.The gear grinding machine which has the function of worm wheel grinding, is 11 axis 5-linkage.

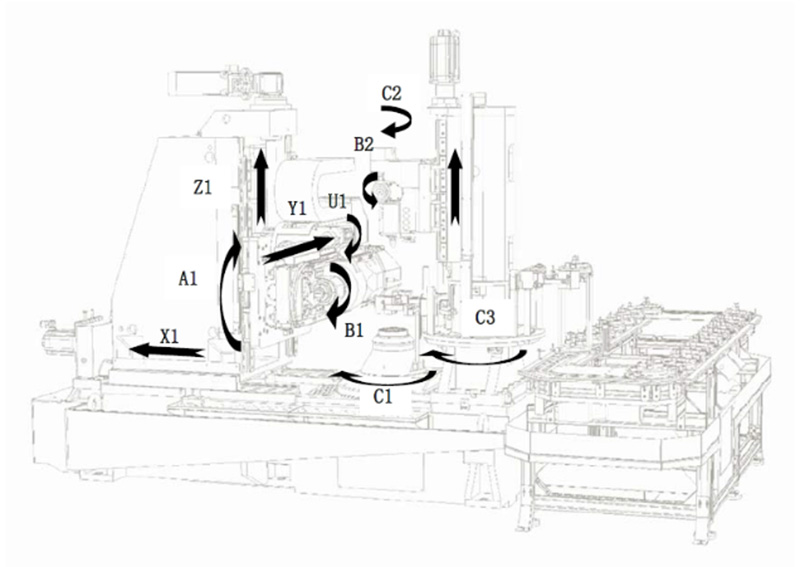

CNC axes are as follows:
A1—rotary motion of grinding wheel base；
B1—rotary motion of grinding wheel spindle；
B2— rotary motion of dressing wheel；
C1—rotary motion of workpiece table；
C2—swing movement of dressing wheel；
C3- rotary motion of manipulator；
X1—radial feeding of grinding wheel；
Y1—tangential feeding of grinding wheel；
Z1—axial feeding of grinding wheel；
Z2—axial movement of outer support；
U1—rotary movement of nozzle；
